10 Top Tips For Injection Mildew Making

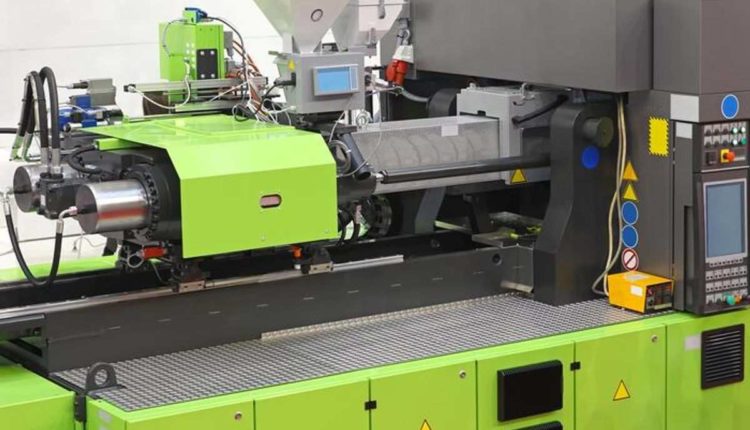

Injection mold creation is nearly always a very difficult profession, and this has never already been more true than these days. Shrinking markets, global competitors, new technologies and a disappearing skilled work force all help the challenge. Look into the Best info about Min-Hui Injection Molding Machines.

The old days of 1 mold maker doing practically everything required are over. The jobs are just too complicated and the lead times are short to allow for this antiquated technique. With all the technical advances within the last twenty or so years, the actual ways have been replaced with a much more integrated and effective approach.

Here are some tips gained through my own experience, as well as a few of my colleagues. There are certainly many other valuable ideas, these types of ten tips are based on the view outside the window from a mold makers viewpoint.

1. Give up the old methods, yield to change

It is just being human to cling to the common. But in a trade for instance mold making this is a food for extinction. Here are a few true-to-life examples to demonstrate.

Some retailers buy high end electrode possessing tooling such as System 3R or Erowa and start working on use it as if it were being simply a way to hold graphite or copper electrodes. Let alone that it can orient along with repeat very accurately.

I possess witnessed some embarrassing violations of this type of tooling in recent times. It defies logic to shell out thousands of dollars and use 10% of the abilities of the tooling. Some shops actually nonetheless use Vee-blocks and perspective plates in the sinker EDM! This might be fine intended for exceptions, but in a modern shape-making facility, it is preposterous.

The same can be said for CAD systems. Maybe because there is some sort of learning curve involved with just about any CAD system some people find out a few features and just continue to be at that level. For example: want to network the entire shop and so everyone has access to the same info? It is totally inefficient to get mold makers run to founder for information all the time.

2. Make certain the project manager, mildew designer and mold creator are all on the same page.

It may help immensely to take some time first of a job to have a getting together with where the big picture is mentioned. It is always much easier to work on various aspects of the job when you have a precise idea of what is required.

Much time are wasted when numerous people figure out the same difficulty independently. Mistakes can be lessened by going over the procedure jointly, plus everyone knows who is liable for what.

3. Do not give up on the design

Some retailers do not have an in-house designer along with must outsource their layout work. This is fine along with works quite well- until the boss decides to reduce costs by cutting costs on the layout. This is just asking for difficulties.

Even with a high-quality mold layout, plastic injection mold generating is fraught with probable problems. When the design will be faulty or missing particulars it can eat up the profit margins very quickly. For example: a simple characteristic like radii that conflict in a shut-off area can be extremely time consuming to trouble shoot and also handwork at the end of the job.

Accentuate your figure of precision holes with their components is another rather frequent omission in mold models as well. Often this does not glance until assembly, at which moment the mold maker need to make new components or adjust existing ones.

Another disregarded area is the draft sides of molding surfaces. The particular mold maker might not query the design when no pen is specified, and as a result, the business will not eject in creating. Draft angles are much easier for the machine before the form is finished!

4. Concentrate on what you are best

Every shop provides its strengths and weaknesses. Carrying out what you do best and departing the rest is usually good advice. You could want to learn something like apaisado milling, but does it comprehend to sacrifice your confined time and energy?

5. Use THREE-DIMENSIONAL models or prototypes to help clarify

As a mold producer, I’ve never understood the reason some bosses are so too ashamed to allow the mold producer five minutes to acquaint himself with the molded element he is about to build a fungal for. This would save many visualizing and guessing. As well as much easier to begin with the end planned.

6. Use standardized parts

Why spend precious form making time machining standard components? You can almost always acquire high-quality components at an extremely competitive price.

The most irrational example of this, that I have witnessed, was a series of ejector hooks that were ground to a more compact size. It must have taken several hours to do this, and they could have acquired them off the shelf to get a fraction of the shop moment they used.

7. Tend not to skimp on the mold bottom

It might be tempting to save a lot of cash by buying a cheap mold bottom, but this almost always causes problems. Some of the problems may include misaligned pockets, away from square plates, incorrect platter thickness, misaligned pins and also bushing, etc.

I have done discount mold bases this required so much re-machining the fact that initial savings quickly disappeared. Not only that, it is very demoralizing to cooperate with junk when you are trying to make quality.

8. Clarify from the beginning who is responsible

This would are generally obvious, but in many merchants the communication is so very poor that it is just assumed this everyone knows what is going on.

A good way to accomplish this is with the break-out assembly or posting it on a bulletin board along with other appropriate information about the shop goings.

9. Make sure everything is correctly ordered and readily available

Few things can send out everyone scrambling like sensing that nobody ordered a. Of course , this usually is identified at the end of the job, when there is almost no time left for shipping.

10. Do not waste time on worthless precision

Sure, an injection form is a highly precise application, but is it really needed for the ejector pin platter to be ground to. 0002 tolerances? Many hours can be squandered on such details which often do absolutely nothing to make the mold far better.


Slow down, take a sound judgment look at your approach and also execution. With all the talk regarding lean manufacturing and packages available, some of the best advice is usually gained by simply communicating with the deals doing the job! That is, if you can make them open up and share from other experience.
